Detection of stripping condition of NEC R550D cement bridge

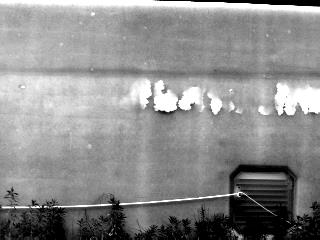

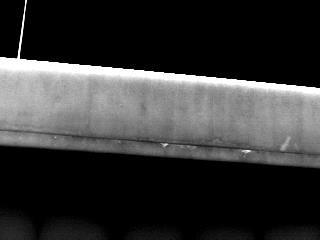

用NEC紅外熱像儀不使用高空作業車或者搭建腳手架，就可以檢查發現水泥橋梁的剝離狀況
解決方案??！

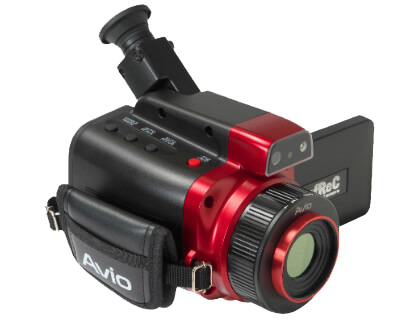

Avio的紅外熱像儀可以實現上述應用，提高點檢的效率
超分辨率功能1280x960像素和廣角(*大93°)的攝影可以實現更精細的觀察

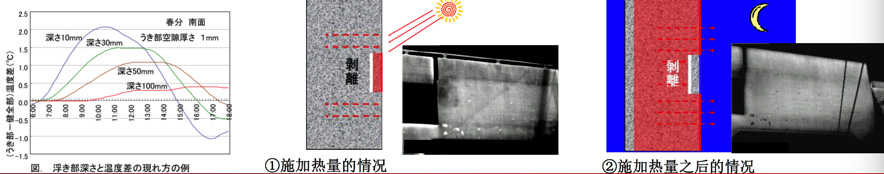

應用NEC R550紅外熱像儀對水泥構造物的剝離狀況的測量原理
① 白天、針對水泥外部施加熱量的話，與健全部位相比較的剝離部位熱容量小、容易更快發熱。
熱量例：太陽光、晝夜的溫度差等
② 外部施加熱量消失的話，水泥構件吸收的熱量會向外部釋放。與熱容量大的部位相比較剝離部位容量小、溫度下降快。一定時間后健全部位與剝離部位的溫度差將消失，此時監測剝離部位就比較困難。
